GRP / GRV
FIBERSTRONG®
Jacking Series
Trenchless technologies and specially Jacking is becoming a cost effective and environmental solution widely used where traffic disruption is not an option.
The success of a jacking project is highly dependent on the installation methodology but more importantly the selection of the pipe and jointing system used in order to ensure a high-quality installation.
FIBERSTRONG® Jacking Series provides advantages given its light weight, corrosion, and abrasion resistance in addition to enhanced hydraulic capacity.
Product Range
FIBERSTRONG® Jacking Series is designed to meet a variety of stiffness classes ranging from SN 20,000 Pa up to SN 1,000,000 Pa (SN 144 psi up to SN 7200 psi), with a maximum pressure rating up to PN 10 barg (PN 150 psig). However, custom-made and other stiffness and pressure classes can be availed to meet demanding project-specific requirements, upon request.
Applications
FIBERSTRONG® Jacking Series is the ideal pipe system for trenchless pipe construction technique with minimal disruption to the surface and surrounding areas. Typical applications include but not limited to:
- Utility trenchless designed infrastructure
- Transportation trenchless designed infrastructure
- Microtunneling
- Culverts and underpasses/crossings.
Advantages of FIBERSTRONG® Jacking Series:

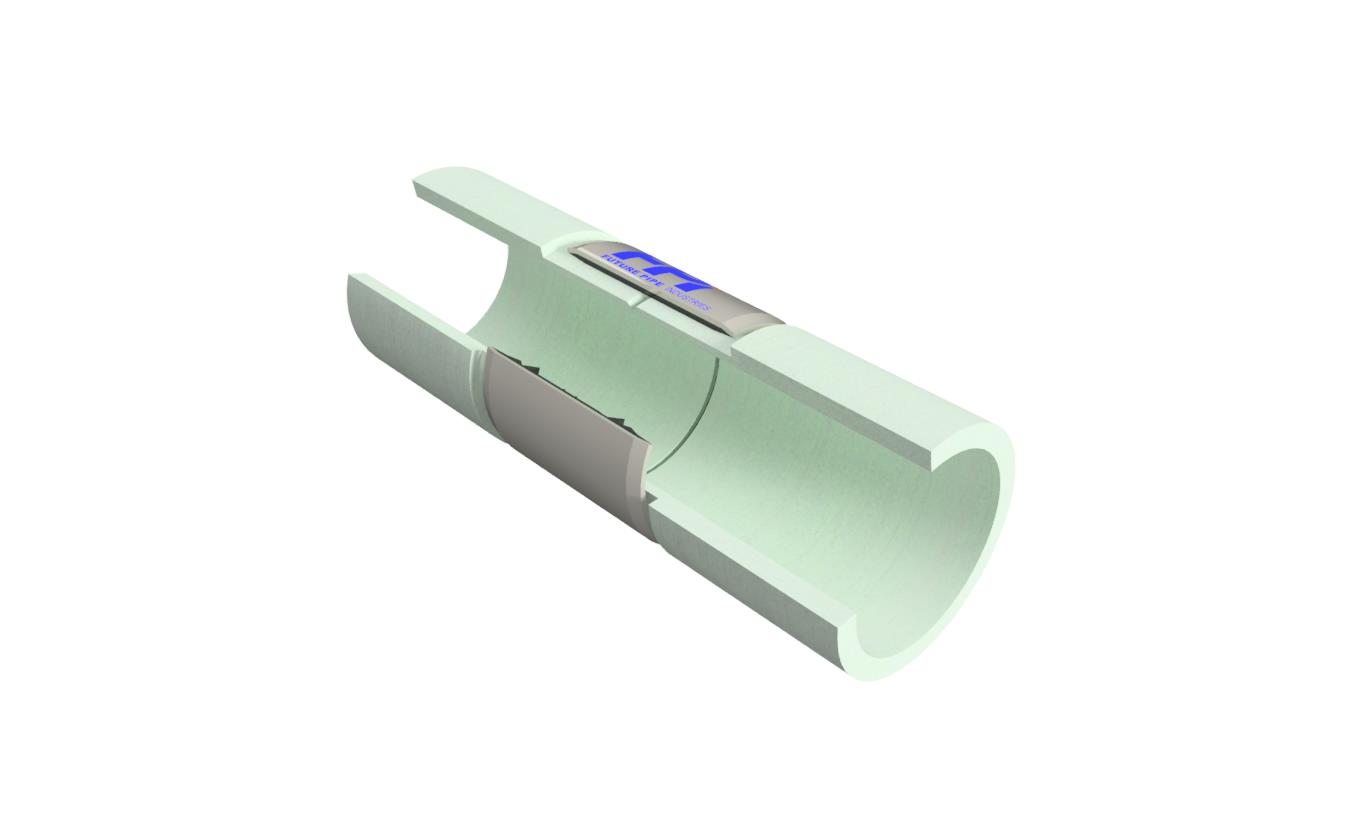

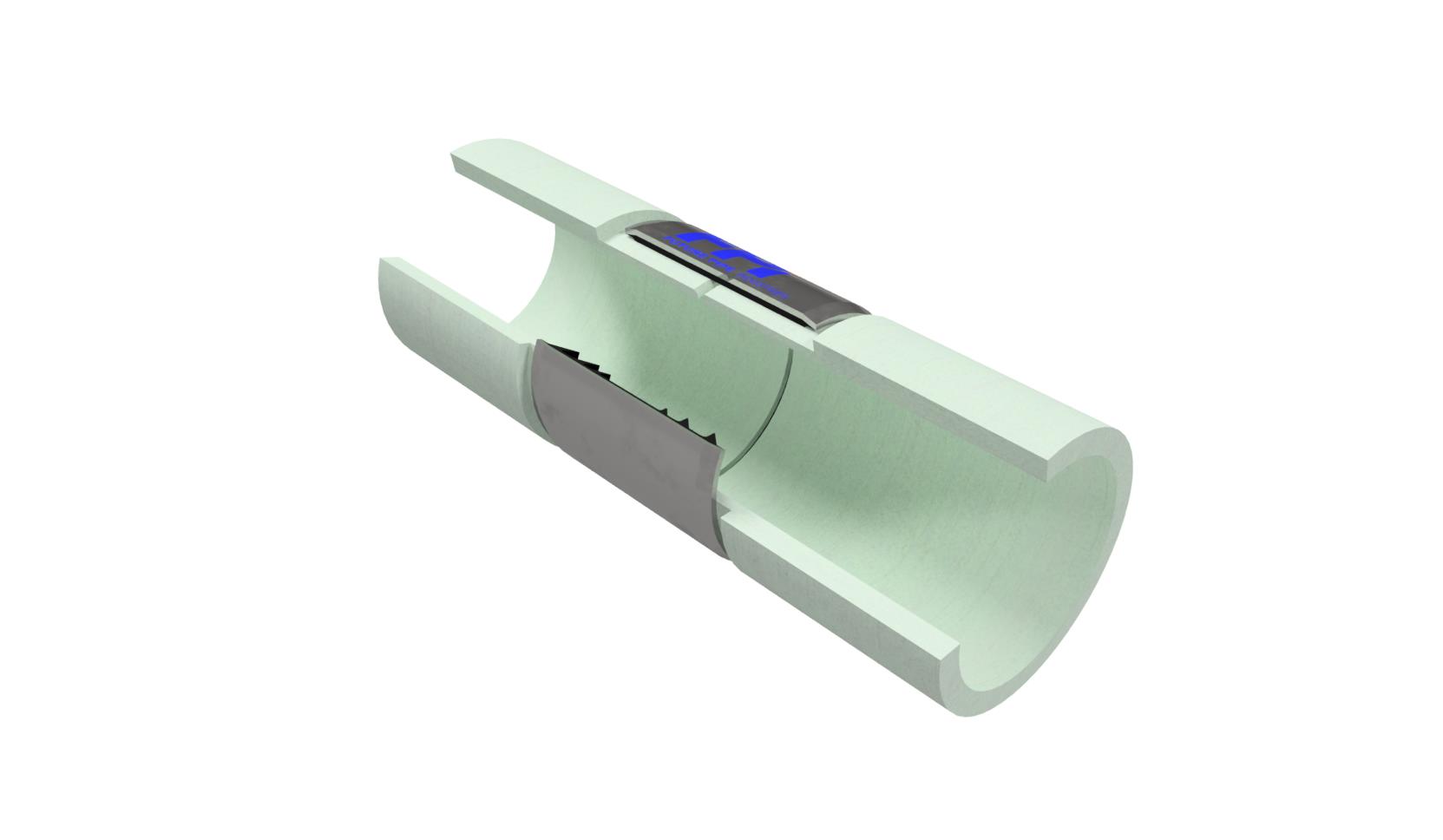

Jointing Systems
01/ 03
TigerWrap Lamination Joint
- Up to 1,500 mm, Pressure up to 20 bar.
- Restrained Joint, does not require thrust blocks.
- Can be installed aboveground, buried, and can be used for field repair and adjustment.
Flanged Joint
- Up to 4,000 mm, Pressure up to 200 bar.
- Restrained Joint, does not require thrust blocks.
- Used for connecting to various types of piping materials, pumps, valves, and accessories.
- Can be installed aboveground, buried in pits, or buried and wrapped.
Adhesive Bonded (Cemented) Joint
- Up to 1,200 mm, Pressure up to 70 bar.
- Restrained Joint, does not require thrust blocks.
- Can be installed aboveground as well as buried.
Downloads
FIBERSTRONG GRP Pipes for Jacking Technologies (European version)
