GRE
WAVISTRONG® FIBERMAR® Standard Series
WAVISTRONG® FIBERMAR® Standard series is manufactured using a thermosetting resin system where glass fibers are impregnated with an aromatic or cycloaliphatic amine cured epoxy resin and helically wound onto a smooth rotating mandrel. The resulting pipe has a robust external pressure-resistant (collapse) performance, chemical and corrosion resistance, as well as excellent mechanical, physical, and thermal properties.
Product Range
WAVISTRONG® FIBERMAR® Standard series pipes and fittings range are available up to 56” (DN 1400 mm) in diameter, and designed to withstand pressures up to 16 Barg (323 Psig), external collapse pressures up to 50 meters water column (mwc), and temperatures up to 100oC (212 oF).
Applications
WAVISTRONG® FIBERMAR® Standard series is the ideal pipe system for marine vessels with a wide range of applications.
The typical applications include but not limited to:
- Ballast Water
- Seawater Cooling/Heating
- Seawater Intake Filters (Strainers)
- Potable Water
- Gland & Flushing (Dredgers)
- Navy Ships Piping Network
- Black and Grey Water
- In-Tank Cargo Lines
- Scrubber Units
Jointing Systems
01/ 05
Flanged Joint
- Up to 4,000 mm, Pressure up to 200 bar.
- Restrained Joint, does not require thrust blocks.
- Used for connecting to various types of piping materials, pumps, valves, and accessories.
- Can be installed aboveground, buried in pits, or buried and wrapped.
Adhesive Bonded (Cemented) Joint
- Up to 1,200 mm, Pressure up to 70 bar.
- Restrained Joint, does not require thrust blocks.
- Can be installed aboveground as well as buried.
Lamination Joint
- Up to 4,000 mm, Pressure up to 70 bar.
- Restrained Joint, does not require thrust blocks.
- Can be installed aboveground, buried, and can be used for field repair and adjustment.

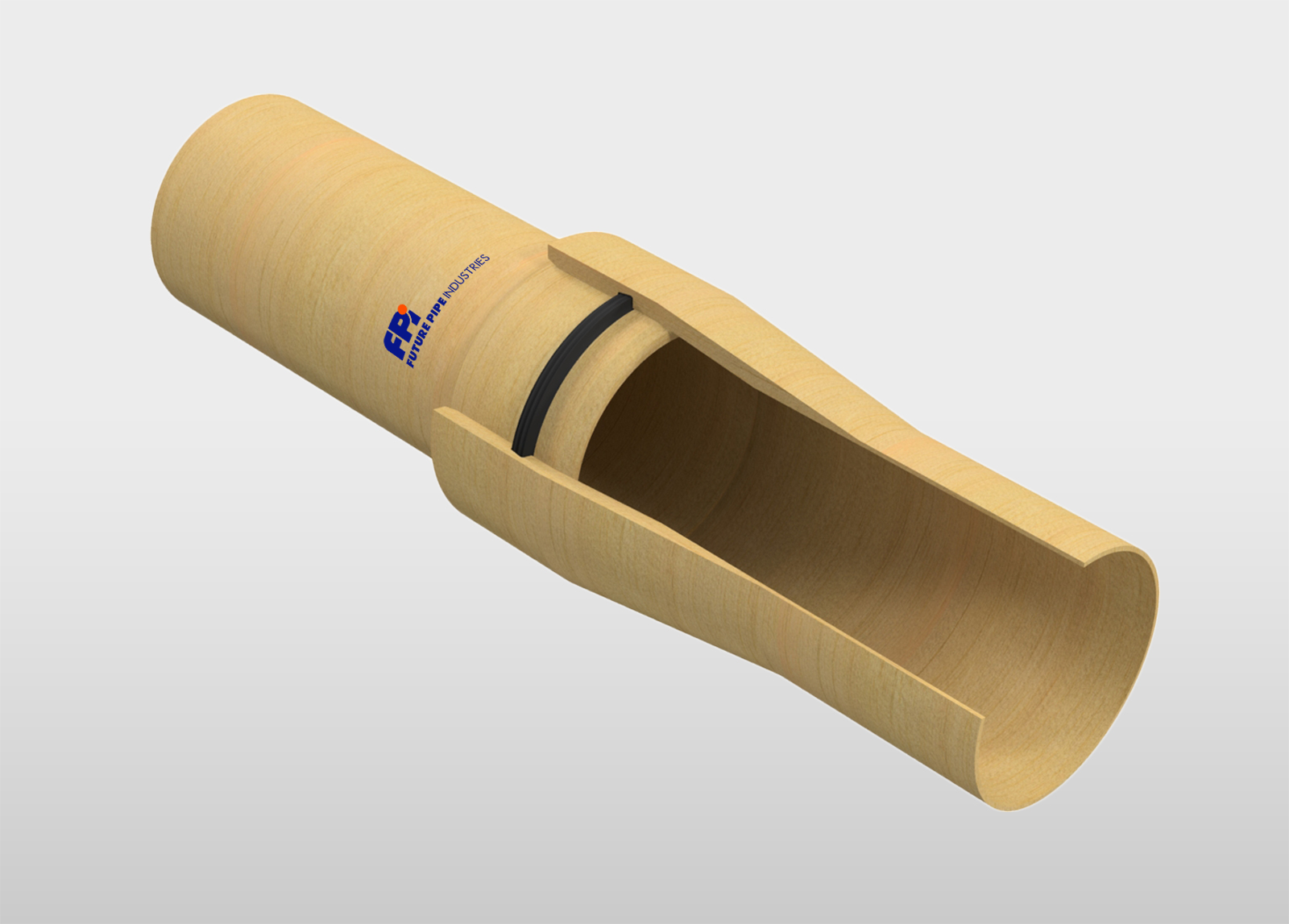

Rubber Seal Bell and Spigot Joint
- Up to 1,400 mm, Pressure up to 50 bar.
- Non-Restrained Joint, with flexibility and deflection, requires thrust blocks or hybrid systems.
- Typically used in buried applications. Hydropower applications may utilize aboveground installation.
Rubber Seal Bell and Spigot Locked Joint
- Up to 1,400 mm, Pressure up to 50 bar.
- Restrained Joint with flexibility, does not require thrust blocks.
- Typically used in buried applications.
